Diamond scribing wheels TY Type used for TFT-LCD, AMOLED glass panel, and LCD glass
WORLDIA
In the manufacturing worldia, changes push us to promote our products and service.
We are devoted to providing you with cutting tools and solutions that match the ambitions of your company.
We want to grow up with you together.
INTRODUCTION
In the field of glass cutting, Worldia is one of the three high-penetration diamond scribings manufacturers
for mass production worldwide and the sole producer in China. Worldia broke the monopoly of the Japanese
diamond scribing wheel in the high-end glass culling area, and get good cooperation with display
panel manufacturers from well-known manufacturers in China and worldwide.
FEATURES
- 1.The teeth ditch is as the cutting edge together to anticipate cuttingit requireslower cutting stress and result of fewer scribing line crack,lateral crack and fewest particles.
|
- 2.It requires lower cutting stress and result of fewer scribing line crack,lateral crack and fewest particles.Result great bending effect.
|
APPLICATION
Cutting TET-LCD. AMOLED classes of thickness above 0.3mm with good penetration cutting section and
well distributed Rib Mark.
SPECIFICATION
| OD (mm ) | Angle(°) | Thickness(mm) | ID(mm) | Teeth Qty | Teeth Depth (μm) |
| 1.80 | 100~140 | 0.65 | 0.80 | 50→500 | 1→10 |
| 2.00 | 100~140 | 0.65 | 0.80 | 50→500 | 1→10 |
| 2.50 | 100~140 | 0.65 | 0.80 | 50→500 | 1→10 |
| 3.00 | 100~140 | 0.65 | 0.80 | 50→500 | 1→10 |
| Remarks | Interval of 5° | | | Interval of 10° | |
About us:
Product Tags:
|
|

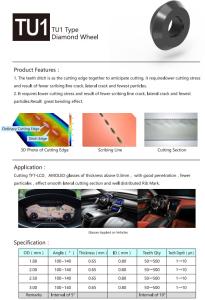

50~500 Teeth TU1 Type Diamond Scribing Wheels For LCD Glass Images
|
