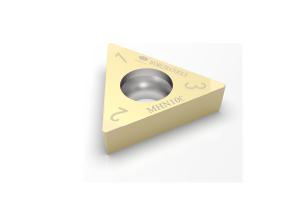

TCGW110204 Coated PCBN Carbide Turning Insert CBN Cutting Insert for hardened steel
Description:
MANANOVA is the sub-brand of WORLDIA, positioned as a high-end standard series,
PCD / PCBN standard inserts are the main products.
Advantages:
· Universal
· Easy choice
· Fast delivery
MANANOVA takes “Easy choice and Fast delivery” as the feature, which intends to provide fast and efficient
service for domestic and foreign customers to meet their demand for standardized and universalized tools.
Main products:
Worldia ManaNova series covers 7 high-quality CBN grades for the processing of hardened steel,
cast iron, and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C, MKN10, MKN20, MSN10, and MSN20.
| MHN10C | Applied to the continuous cutting of hardened steel |
| MHN20C | Applied to medium interrupted cutting of hardened steel |
| MHN30C | Applied to the heavy interrupted cutting of hardened steel |
| MKN10 | Applied to the cutting of gray cast iron |
| MKN20 | Applied to the cutting of ductile iron |
| MSN10 | Applied to the cutting of powder metallurgy |
| MSN20 | Applied to the cutting of powder metallurgy
|
Coated PCBN insert has excellent universal performance.
PCD Turning Inserts can be used in many fields including the car industry, energy equipment, and the wood and stone
industry.
PCD insert (MND10 material ) is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Specification:
| Material | ISO H | ISO K | ISO S |
| PCBN Grade | MHN10C | MHN20C | MNH30C | MKN10 | MKN20 | MSN10 | MSN20 |
| Smooth | Moderate | Toughness | Cast Iron | Ductile Iron | Powder Metallurgy | Powder Metallurgy |
| Vc | 180(150~250)
m/min | 100(50~150)
m/min | 80(30~120)
m/min | 600(300~800)
m/min | 300(150~450)
m/min | 300(200~500)
m/min | 500(300~800)
m/min |
| fn | 0.1(0.03~0.2)
mm/r | 0.1(0.03~0.2)
mm/r | 0.1(0.03~0.2)
mm/r | 0.1(0.03~0.3)
mm/r | 0.1(0.03~0.3)
mm/r | 0.1(0.03~0.3)
mm/r | 0.1(0.03~0.3)
mm/r |
| % | 45~55 | 60~70 | 85~95 | 85~95 | 60~70 | 60~70 | 85~95 |
| Grain size | 1~2 um | 1~2 um | 2~3um | 2~3 um | 1~2 um | 1~2 um | 2~3 um |
| Bond | TiC | TiN | Co/W | Co/W | TiCN | TiCN | Co/W |
| TCGW | Shape | Dimensions |
| ANSI Code | ISO Code | Tips | IC
mm | S
mm | R
mm | Φd
mm | LE
mm |
All
Stocked | TCGW 1.81.51 | TCGW 090202 | 3N | 5.56 | 2.38 | 0.4 | 2.8 | 2.2 |
| TCGW 1.81.52 | TCGW 090208 | 3N | 5.56 | 2.38 | 0.8 | 2.8 | 2.2 |
| |
| TCGW 21.51 | TCGW 110204 | 3N | 6.35 | 2.38 | 0.4 | 2.8 | 2.2 |
| TCGW 21.52 | TCGW 110208 | 3N | 6.35 | 2.38 | 0.8 | 2.8 | 2.2 |
| |
| TCGW 221 | TCGW 110304 | 3N | 6.35 | 3.18 | 0.4 | 2.8 | 2.2 |
| TCGW 222 | TCGW 110308 | 3N | 6.35 | 3.18 | 0.8 | 2.8 | 2.2 |
